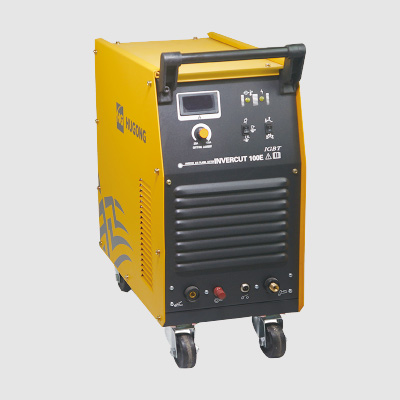

Industrial on wheels plasma cutter
Advanced IGBT technology
Thermal protection
Stepless current adjustment
Digital display
2T/4T function
Smooth DC HF arc piloting
Handles a variety of metal materials
| Model | INVERCUT 100E | INVERCUT 120E |
| Input Power (V) | 380 | 380 |
| Rated Input Current (A) | 30 | 50 |
| Rated Input Capacity (kVA) | 17.8 | 23 |
| Output Open Circuit Voltage(V) | 320 | 320 |
| Rated Working Voltage(V) | 120 | 128 |
| Output Current Adjustment Range(A) | 30-100 | 30-120 |
| Duty Cycle(A) (20℃)/(40℃) | 60%/45%@100 | 60%/45%@120 |
| Used Pressure of Cutting Torch Gun's Using Pressure | 0.45 | 0.45 |
| Recommend Cutting Thickness(mm) | 20 | 25 |
| Max.Cutting Thickness (mm) | 30 | 35 |
| Weight (kg) | 43.2 | 43.5 |
| LxWxH (mm) | 650x390x805 | 650x390x805 |
