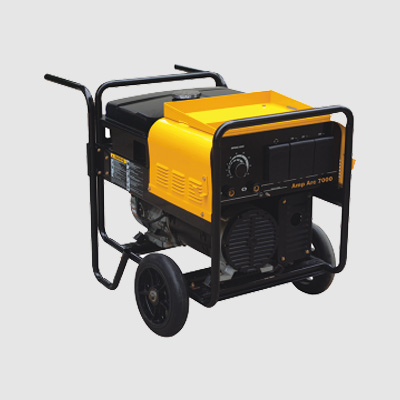

Easy transportation DC welder generator
Powerful and reliable engine
AVR circuit ensure stable electricity output
Thermal protection
Stepless welding current setting
Exceptional DC Stick welding performance
Ideal equipment for outdoor and field use
| Model | EDGE 185L | EDGE 145L |
| Function | CC/PIPE | CC/PIPE |
| Technology | DC/CC | DC/CC |
| Output Power (V/Hz) | 120/240V 50/60Hz | 120/240V 50/60Hz |
| Phase | 1 | 1 |
| Output Power (W) | 6000 | 4000 |
| Max Power (W) | 6600 | 4500 |
| Rated input Current(A) | 50/25 | 33.3/16.7 |
| Fuel Tank (L) | 19 | 6 |
| Start Type | Manual | Manual |
| Rated Amperage(A) | 130 | 110 |
| Open Circuit Voltage (V) | 75 | 60-75 |
| Welding Current (A) | 60-185 | 55-145 |
| Duty Cycle (% at A) | 50% | 50% |
| Electrode/ Wire Dia (mm) | 1.6-4.0 | 1.6-3.2 |
| Machine Size (mm) | 828x580x640 | 700x580x680 |
| Package Size (mm) | 900x700x650 | 755x625x710 |
| NET Weight (kg) | 140 | 80 |
| Gross Weight (kg) | 150 | 90 |
