CNC controller: American, European and Sparkon brand options
Automatic THC: Hypertherm and Sparkon brand options
Servo motor: Panasonic
Gear box: Germany brand NEUGART
Linear rail: TBI or HIWIN
Relay: Omron
Breaker: Schneider

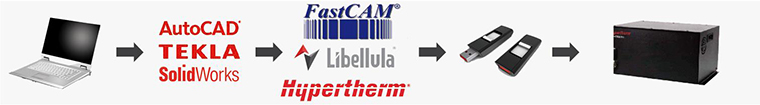

Nesting software options
Australian: FastCAM PRO
American: Hypertherm Turbonest
American: Hypertherm ProNest
American: SigmaNest

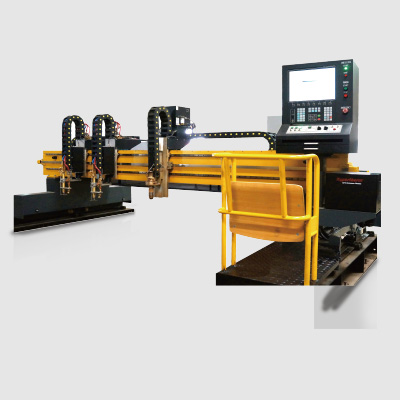

| Model | MAXCUT |
| Cutting model | Plasma, Flame |
| Input voltage(V,Hz) | 110/220/230/240, 220/380/400/415,50/60 |
| Rail width(mm) | 3000-10000 |
| Effective cutting width | 1000mm less than rail width(2 CNC torches) |
| Rail length(mm) | Customer's requirement, 8000/12000/16000 |
| Effective cutting length | 2500mm less than rail length |
| CNC controller | 15”/17”colorful monitor, USB port |
| CNC torches | 1-6 sets |
| Positioning accuracy(mm) | ±0.5/1000 |
| Repeating accuracy(mm) | ±0.2/1000 |
| Positioning speed(mm/min) | 12,000 |
| Flame cutting gas | Acetylene, Propane, LPG |
| Flame cutting thickness(mm) | 5-150 |
| Flame cutting speed(mm/min) | 50-750 |
| Plasma cutting thickness | Due to plasma unit |
| Plasma cutting speed | Due to plasma unit |
| Compatible plasma unit | Hypertherm: Powermax Series,HSD130,Maxpro200 Victor: Cutmaster Series, AUTOCUT200/300 |
| High definition plasma unit | Hypertherm: HPR130,260,400,800XD Victor: Ultracut200,300,400 Kjellburge: Hifocus and Smartfocus series |
