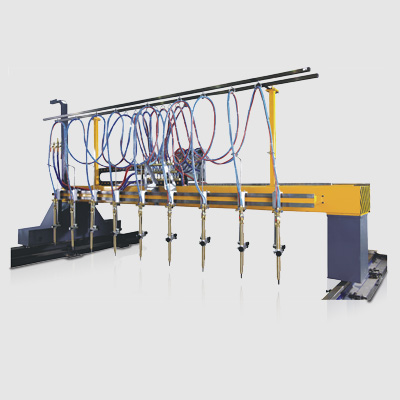

It is featured to cut strips
Strong steel structure gantry to support durability
Supplied with easy control box
Motor is DC motor
Torch quantity on Y can be optional
1 torch is on X
Manual adjustment is on space between 2 torches Steel ruler is for adjustment accurately
Manual adjustment for torch height control
| Gantry | STRIPCUT |
| Power Voltage(V) | 110/220/230, 1 phase |
| Effective Cutting Width (mm) | X |
| Effective Cutting length (mm) | Y-2000mm |
| Rail with(mm) | X |
| Rail length(mm) | Y |
| Maximum speed(mm/min) | 8000 |
| Strip cutting torch | as customer request |
| Horizontal torch | 1 set |
| Minimun strip width(mm) | 80 |
| Max cutting thickness by 1 torch(mm) | 6-150m |
| Max cutting thickness by 9 torch | Standard 25mm or customised |
| Max cutting thickness by more torch | to be confirmed |

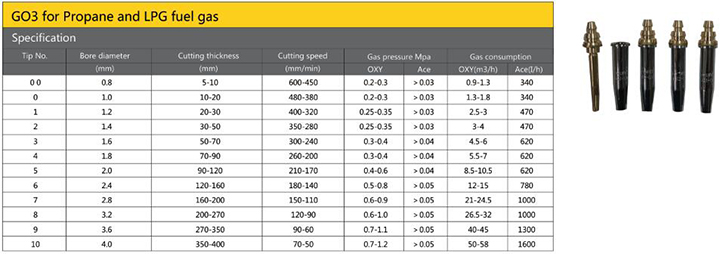

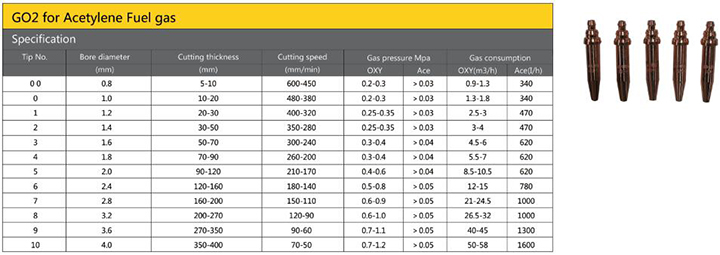

| Flame Cutting gas | Acetylene, Propane, LPG - O2 |
