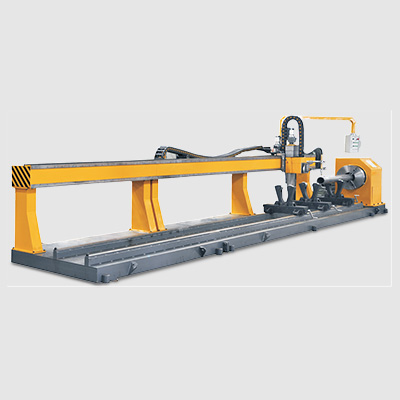

A professional and economic pipe cutter
Easy installation
Strong steel structure

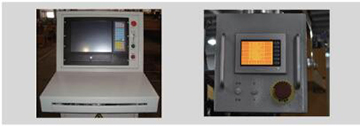

Friendly interface, easy operation
Supply with easy and economic software
Flame and Plasma options
Portable machine, good for contract based production
FreePIPE functions
Input existing drawings
Modify drawings easily
Optimize drawing details
Generate G-codes
| Model | HGPIPE-III |
| Cutting process | Plasma, Flame |
| Input voltage(V/Hz) | 110/220/230/240, 220/380/400/415,50/60 |
| Pipe diameter(mm) | 60-1500 |
| Pipe length(mm) | 3000, 6000, 12000, 20000 |
| CNC controller | HG823 |
| Axis | 3 axis |
| Motor | Step motors |
| Positioning accuracy(mm) | ±0.5/1000 |
| Repeating accuracy(mm) | ±0.2/1000 |
| Positioning speed(mm/min) | 6,000 |
| Plasma power source | Hypertherm: Powermax series MAXPRO200, HPR260,XPR300,HPR400 |
| Flame cutting gas | Acetylene, Propane, LPG - O2 |
| Nesting software | Free pipe |
