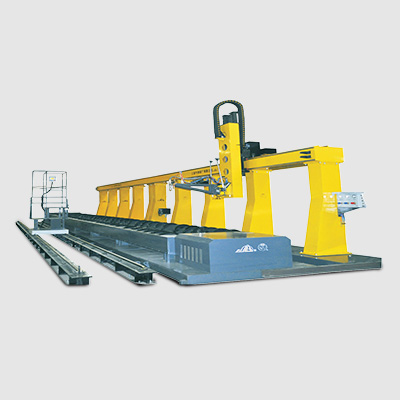

A machine for heavy cutting job
For beveling cutting purpose specially
Ready for 3,4,5,6 axis cutting
Controller is Windows system,with mouse/keyboard
512MB memory, 120G Hard disk
USB ports on controller
With built-in designs
With plasma options for various wall thickness
Electrical cabenit is for heavy duty jobs
Machine is equiped with servo motors
Trolley structure for quick positioning
Flexible swing device for beveling cutting
Used in offshore, oil industry, construction, shipyard,fabrication,etc.
| Model | MAXPIPE |
| Cutting process | Plasma, Flame |
| Input voltage(V,Hz) | 110/220/230/240, 220/380/400/415,50/60 |
| Pipe diameter(mm) | 300-1500 |
| Pipe length(mm) | 3000, 6000, 12000, 20000 |
| Loading capacity(mm,Kg) | 3000 length: Thickness:15, Weight:500 |
| CNC controller | HG812 |
| Axis | 4, or 5, or 6 |
| Motor | Servo motor |
| Positioning accuracy(mm) | ±0.5/1000 |
| Repeating accuracy(mm) | ±0.2/1000 |
| Positioning speed(mm/min) | 6,000 |
| Plasma power source | Hypertherm: MAXPRO200, HPR260,XPR300,HPR400 |
| Flame cutting gas | Acetylene, Propane, LPG - O2 |
