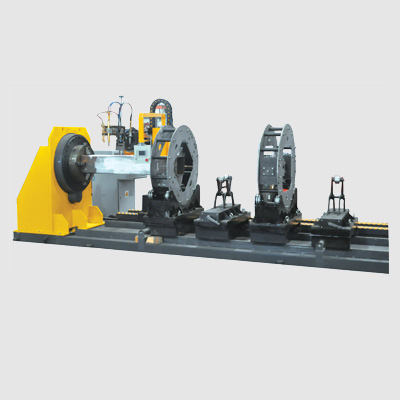

A tehcnical and economic choice square pipe cutting process.
Machine can be designed to have X, Y, Z, A, B, U and C axis.
Strong trolley structure or beam structure ensures durability,stability and quick speed.
CNC controller gives screen of 15〃, English and other language.

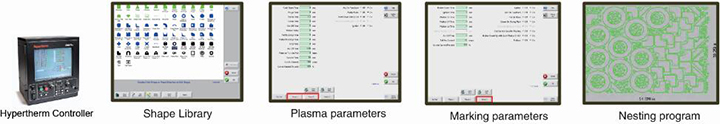

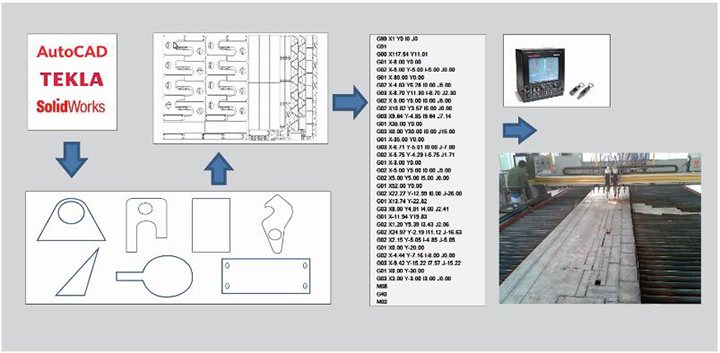

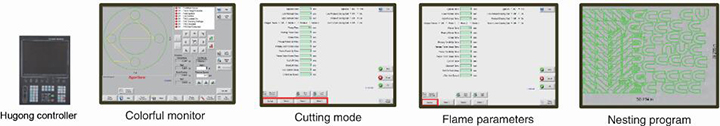

CNC Controller gives easy operation interface,shape library and cutting parameters programs.
10 shapes designed are built in controller.
| Model | HGTUBE |
| Power Voltage | 220V/380V,Custormised voltage |
| Circle tube outside diameter(mm) | ￠60-￠1000 |
| Square tube outside diameter(mm) | 200x200-400x400 |
| Max loading capacity(Kgs) | 5000 |
| Cutting thickness(mm) | 5-80 |
| Material: | Mild steel(Stainless steel and aluminum alloy need plasma cutter) |
| Flame Cutting speed(mm/min) | 100-750 |
| Plasma Cutting speed(mm/min) | 500-5000 |
| Numbers of control axis | 5、6、7 |
| Flame Cutting Gas | Acetylene, Propane,Natural gas,Propylene |
