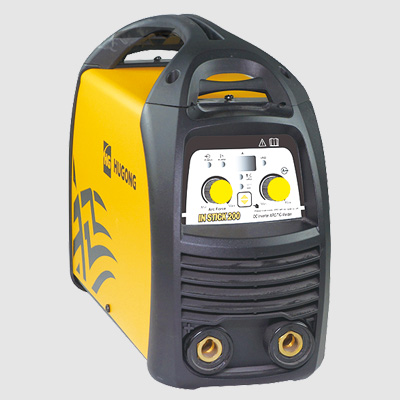

Portable stick welder
Advanced IGBT technology
Voltage compensation
Thermal protection
Stepless current setting
Hot start, anti-sticking, arc force adjustable
Lift Arc TIG function
Available for rutile and basic electrode
Continous welding
| Model | POWER STICK 160E | POWER STICK 200E |
| Input Power (V) | 230 | 230 |
| Rated Input Current (A) | 16.4 | 21.9 |
| Rated Input Capacity (kVA) | 6.9 | 9.2 |
| Rated Open Circuit Voltage(V) | 69 | 69 |
| Welding Current Adjustment Range(A) | 20-160 | 20-200 |
| Rated Output(A) (20℃) / (40℃) | 30%/@160 | 30%/@200 |
| Weight (kg) | 5 | 5 |
| Electrode Diameter (mm) | 1.6-3.2 | 1.6-5.0 |
| LxWxH (mm) | 450x245x345 | 450x245x345 |
