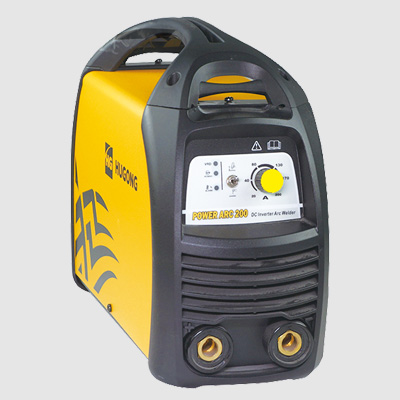

Portable stick welder
Advanced IGBT technology
Voltage compensation
Stepless current setting
Hot start, anti-sticking, arc force
Available for rutile and basic electrode
Continous welding
Lift Arc TIG as options
| Model | POWER ARC 140E | POWER ARC 160E | POWER ARC 180E | POWER ARC 200E |
| Input Power (V) | 230 | 230 | 230 | 230 |
| Rated Input Current (A) | 25 | 30 | 35 | 38 |
| Rated Input Capacity (kVA) | 5.8 | 6.9 | 8.1 | 8.7 |
| Rated Open Circuit Voltage(V) | 78 | 78 | 72 | 72 |
| Welding Current Adjustment Range(A) | 20-140 | 20-160 | 20-180 | 20-200 |
| Rated Output(A) (20℃) / (40℃) | 40%/20%@140 | 40%/20%@160 | 40%/20%@180 | 40%/20%@200 |
| Weight (kg) | 4.6 | 4.6 | 4.75 | 4.75 |
| Electrode Diameter (mm) | 1.6-3.2 | 1.6-4.0 | 1.6-4.0 | 1.6-5.0 |
| LxWxH (mm) | 385x125x260 | 385x125x260 | 385x125x260 | 385x125x260 |
