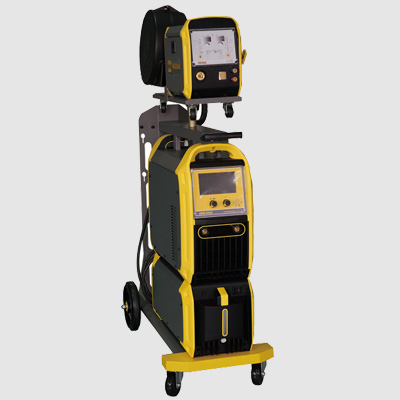

TekMaster PMIG TekMaster

Product description

Industrial on trolley Multi-Process inverter welder

Advanced IGBT inverter technology

Multiple processes with MIG/STICK/Lift arc TIG/pulse MIG

Thermal protection, over/lack voltage protection

Easy Set-up & adjustment panel,Stepless voltage, wire speed setting, Digital display

Spot timer,2T/4T,gas check,Gas pre-flow,Gas post-flow, Burn back

Data memory function

Four roller wire feeding system

High duty cycle and welding capacity

Ready to connect with robot

Handles a wide range of wire and electrode for a variety of welding materials

technical parameter

Model TekMaster PMIG 350 TekMaster PMIG 500
Input Power (V) 380 380
Rated Input Current (A) 30 38
Rated Input Capacity (kVA) 16.8 32.5
Rated Open Circuit Voltage(V) 78 76
Welding Current Adjustment Range(A) MIG 30-350/MMA 10-350 MIG 30-500/MMA 10-500
Rated Output(A) (20℃) / (40℃) 100%/60% @350 100%/60% @500
Weight (kg) 150 150
Wire Diameter (mm) 0.8-1.2 0.8-1.6
LxWxH (mm) 1095x525x1120 1095x525x1120
