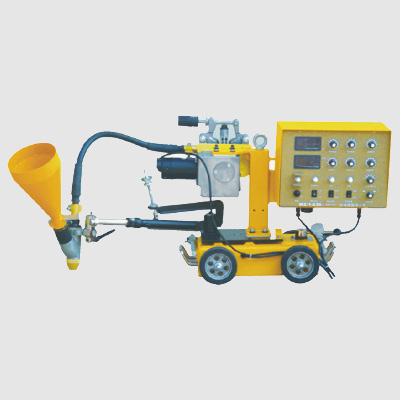

Submerged Arc Fillet Welding Tractor SUB ARC

Product description

The cart walks stability, adapt for various welding wire from Φ1.6 to Φ2.4mm

Compact structure, light weight, with lifting welding torch, automatic tracking to the welding line, adjust able and flexibility

Adopt straightening institutions of the double drive wire feeder, feed wire stable, well centering, huge traction, feed wire strongly, small power dissipation

technical parameter

Main technical specification MZ-ZK-C
Welding speed 0.2-2.0m/min
Wire feeding speed 0.4-6m/min
Welding current 630A
Wire diameter 1.6/2.0/2.4
Wire type solid wire
Beam adjustable length <150
Beam adjustable height <50
Torch rotation angle ±45°
Torch deflexion angle ±45°
Flux capacity 2L
Wire spool capacity 20kg
Dimensions:LxWxH(mm) 1050 x 320 x 495
Weight 35kg
