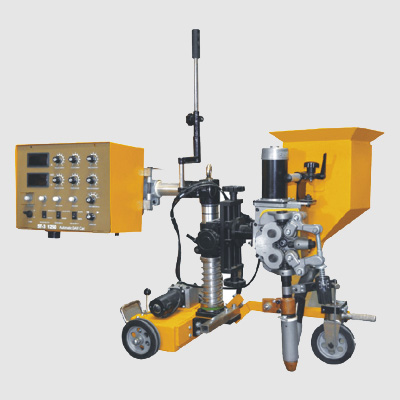

Three-wheel Submerged Arc Tractor SUB ARC

Product description

The cart walks stability, the distance of pilot is short,wide using

Adapt for various welding wire from 2.0-6.0

Besides the straight welding, Also can turn left and right, and have the function of the welding arc curve

Flexible adjustment direction, the head and welding torch are skewed together and easy to rotation

Adopt straightenng institutions of the double drive wire feeders ,feed wire stably and strongly, less power

technical parameter

Main technical specification MZ-ZK-D
Welding speed 0.2-1.5m/min
Wire feeding speed 0.25-2.5m/min
Welding current 630A、800A、100A、1250A
Wire diameter 2.0/3.0 3.0/4.0/5.0
Wire type solid wire
Welding head adjustable height 70mm
Welding head adjustable distance 100x100(Vertical, horizonal)
Welding head rotation angle 90°
Torch deflection angle 45°
Flux capacity 6L
Wire spool capacity 25kg
Dimensions(LxWxH) 120x480x740mm
Weight 52kg(not including the wire)
