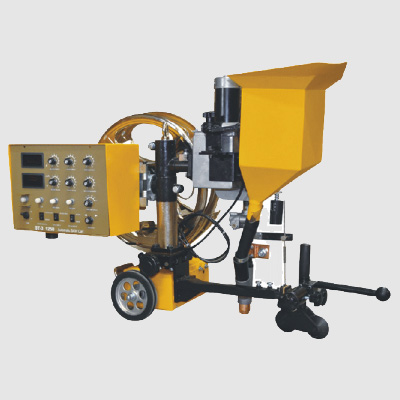

Three-wheel Pipe Submerged Arc Tractor SUB ARC

Product description

Stable working, suitable for wire diameter Φ2.0-Φ6.0

Compact structure, adjustment device compose of planker, lead screw, gear and rack, ensure the flexible, easy and exact adjustment of guide pulley and torch position

Suitable for welding of inner longitudinal seam, which diameter ≥Φ800 and inner cycle seam, which diameter ≥Φ1000, also suitable for flat welding of thin-middle plate

technical parameter

Main technical specification MZ-10-D
Welding speed 0.2-1.5m/min
Wire feeding speed 0.25-2.5m/min
Welding current 630A、800A、1000A、1250A
Wire diameter 2.0/3.0 3.0/4.0/5.0 /4.0/5.0/6.0
Wire type solid wire
Guide pulley longitudinal adjustable distance 70mm
Guide pulley horizontal adjustable distance 30mm
Torch adjustable distance 80mm
Welding head horizontal adjustable distance 30mm
Flux capacity 6L
Wire spool capacity 25kg
Dimensions(LxWxH) 800 × 500 × 700
Weight 52kg
Suitable pipe diameter inner longitudinal seam Φ≥800 inner cycle seamΦ≥1000
