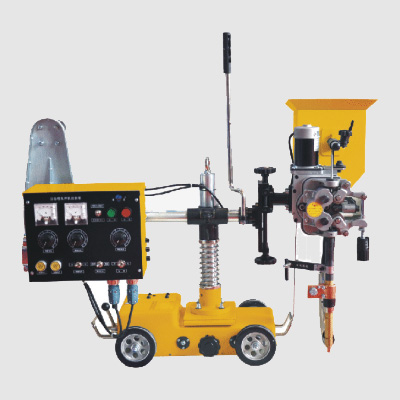

Wide welding range, two wires feed into welding at the same time
Flexible and easy adjustment, welding head and torch luffing, rotation together, beam can also luffing or rotation
Flux door rotation and swing angle adjustable and flexible
Dual drive wire feed device with coalignment, stable wire feeding, strong traction and powerful feeding force.
| Main technical specification | MZ-ZK-A-Z |
| Wire diameter | 1.6-2.0mm |
| Welding speed | 0.2-1.5m/min |
| Wire feeding speed | 0.55-5m/min |
| Beam adjustment height | 100mm |
| Welding head adjustable distance | 100×100×70mm |
| Beam rotation angle around the column head | ±90° |
| Torch deflexion angle | 45° |
| Welding head rotation angle | 45° |
| Flux capacity | 6L |
| Wire spool capacity | 20kg |
| Dimensions(LxWxH) | 1000 x 450 x 1020 |
| Weight | 54kg |
