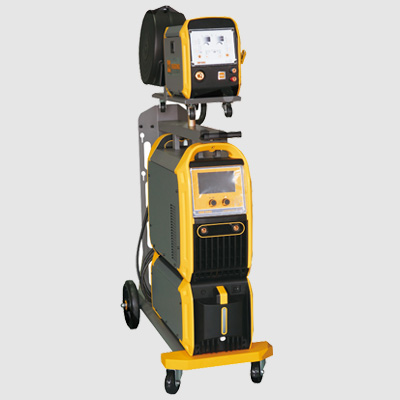

Industrial on trolley Multi-Process inverter welder
Advanced IGBT inverter technology
Multiple processes with MIG/STICK and Lift arc TIG
Thermal protection, over/lack voltage protection
Friendly interface design,LCD Digital display, variety of welding parameter adjustable
Synergetic function, data memory function
Four roller wire feeding system
Handles a wide range of wire and electrode for a variety of welding materials
| Model | TekMaster MIG 350 | TekMaster MIG 500 |
| InputPower(V) | 400 | 400 |
| Rated Input Current(A) | 25.5 | 41.8 |
| Rated Input Capacity (kVA)) | 16.8 | 27.5 |
| Rated Open Circuit Voltage(V) | 70 | 70 |
| Welding Current Adjustment Range(A) | MIG 40-350/MMA 40-350 | MIG 40-500/MMA 40-490 |
| Rated Output(A)(20℃) / (40℃) | 80%/60% @350 | 80%/60% @500 |
| Weight(kg) | 40 | 41 |
| WireDiameter (mm) | 0.8-1.2 | 1.0-1.6 |
| LxWxH (mm) | 576x297x557 | 576x297x557 |
