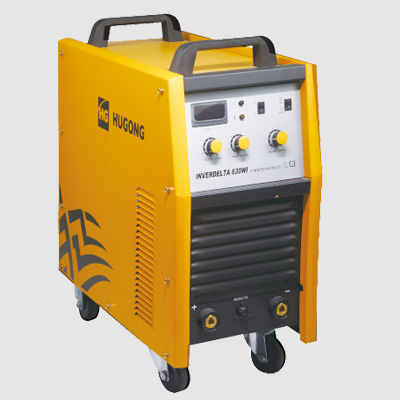

Industrial on wheels stick welder
IGBT full bridge technology
Adavanced voltage compensation technology allows the +/-15% voltage fluctuation.
Stepless current setting
Built-in anti-sticking, hot start & arc force adjustable
High duty cycle and welding capacity
Carbon arc gouging function
Allow extension 100m connection cable
Welds a Variety of Materials, available for basic, rutile, cellolusic electrode
Available for remote control
Suitable as multi-head welding power source
| Model | INVERDELTA 400WI | INVERDELTA 500WI | INVERDELTA 630WI |
| Input Power (V) | 380 | 380 | 380 |
| Rated Input Current (A) | 21.6 | 31.7 | 41.8 |
| Rated Input Capacity (kVA) | 18.4 | 27 | 35.5 |
| Rated Open Circuit Voltage(V) | 76 | 82 | 91 |
| Welding Current Adjustment Range(A) | 25-400 | 25-500 | 25-630 |
| Rated Output(A) (20℃) / (40℃) | 100%/60%@400 | 100%/60%@500 | 100%/60%@630 |
| Weight (kg) | 45 | 49 | 49 |
| Electrode Diameter (mm) | 1.6-5.0 | 1.6-5.0 | 1.6-5.0 |
| LxWxH (mm) | 690x430x810 | 690x430x810 | 690x430x810 |
