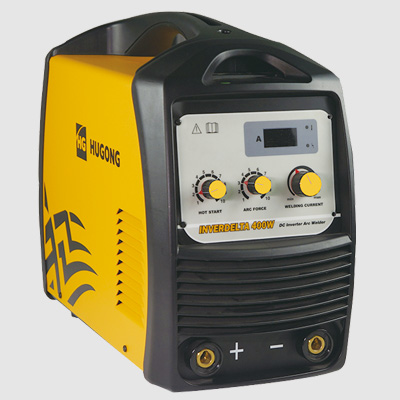

Portable stick welder
Advanced IGBT technology
Thermal Protection
Stepless currnet setting
Built-in anti-sticking, hot start & arc force adjustable
NTC thermal sensor
High duty cycle and welding capacity
Welds a variety of materials
| Model | INVERDLTA 300W | INVERDLTA 400W | INVERDLTA 300W | INVERDLTA 400W |
| Input Power (V) | 230 | 230 | 400 | 400 |
| Rated Input Current (A) | 34 | 50 | 25 | 29 |
| Rated Input Capacity (kVA) | 13 | 19 | 15 | 19 |
| Rated Open Circuit Voltage(V) | 17 | 17 | 17 | 17 |
| Welding Current Adjustment Range(A) | 15-300 | 15-400 | 15-300 | 15-400 |
| Rated Output(A) (20℃) / (40℃) | 60%/35%@300 | 60%/35%@400 | 60%/35%@300 | 60%/35%@400 |
| Weight (kg) | 19 | 19 | 19 | 19 |
| Electrode Diameter (mm) | 1.6-5.0 | 1.6-5.0 | 1.6-5.0 | 1.6-5.0 |
| LxWxH (mm) | 655x325x455 | 655x325x455 | 655x325x455 | 655x325x455 |
