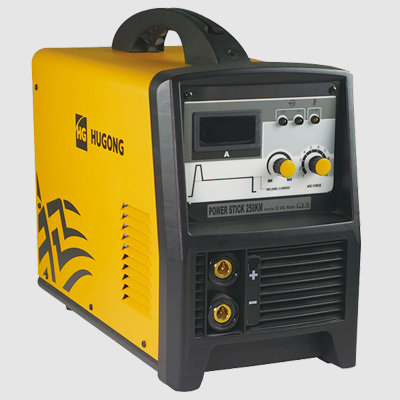

Portable IGBT Inverter stick welder
Thermal protection
Digital Display
Stepless current setting
Hot Start
Adjustable arc force
Available for rutile and basic electrode
Optional functions as following: Cellulosic electrode
| Model | POWER STICK 250K | POWER STICK 300K | POWER STICK 252K |
| Input Power (V) | 400 | 400 | 230/400 |
| Rated Input Current (A) | 14.3 | 18.5 | 47/33 |
| Rated Input Capacity (kVA) | 9.4 | 12.1 | 14.6/17.7 |
| Rated Open Circuit Voltage(V) | 66 | 66 | 72/62 |
| Welding Current Adjustment Range(A) | 30-250 | 30-300 | 25-250 |
| Rated Output(A) (20℃) / (40℃) | 60%/35%@250 | 60%/35%@300 | 60%/40%@250 |
| Weight (kg) | 17 | 17 | 16 |
| Electrode Diameter (mm) | 1.6-5.0 | 1.6-5.0 | 1.6-5.0 |
| LxWxH (mm) | 505x240x404 | 505x240x404 | 505x240x404 |
