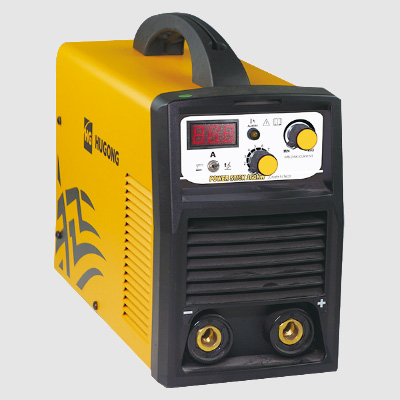

Portable stick welder
Advanced IGBT technology
Thermal Protection
Stepless currnet seting
Built-in hot start, anti-sticking,arc force adjustable
Lift Arc TIG function
Digital display
High duty cycle and welding capacity
| Model | POWER STICK 160KW | POWER STICK 180KW | POWER STICK 200KW | POWER STICK 202KW |
| Input Power (V) | 230 | 230 | 230 | 110/220 |
| Rated Input Current (A) | 16.4 | 21.1 | 23.4 | 4 2/4 0 |
| Rated Input Capacity (kVA) | 6.6 | 7.59 | 8.51 | 4 .6 /8.8 |
| Rated Open Circuit Voltage(V) | 80 | 80 | 80 | 80 |
| Welding Current Adjustment Range(A) | 30-160 | 30-180 | 30-200 | 30-200 |
| Rated Output(A) (20℃) / (40℃) | 40%/20%@160 | 40%/20%@180 | 40%/20%@200 | 40%/20%@200 |
| Weight (kg) | 6.7 | 6.7 | 6.7 | 6.7 |
| Electrode Diameter (mm) | 1.6-3.2 | 1.6-4.0 | 1.6-5.0 | 1.6-5.0 |
| LxWxH (mm) | 420x215x330 | 420x215x330 | 420x215x330 | 420x215x330 |
