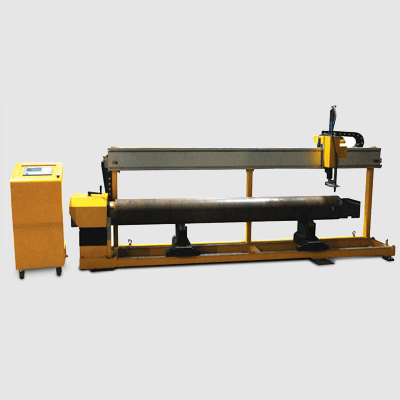

A professional and economic pipe cutter
Easy installation
Strong steel structure
Friendly interface, easy operation
Supply with easy and economic software
Flame and Plasma options
Portable machine, good for contract based production
FreePIPE functions
Input existing drawings
Modify drawings easily
Optimize drawing details
| Model | INTEPIPE |
| Cutting process | Plasma, Flame |
| Input voltage(V,Hz) | 110/220/230/240, 220/380/400/415,50/60 |
| Pipe diameter(mm) | 60-260 |
| Pipe length(mm) | 3000 |
| Loading capacity(mm,Kg) | 3000length: Thickness:10, Weight:250 |

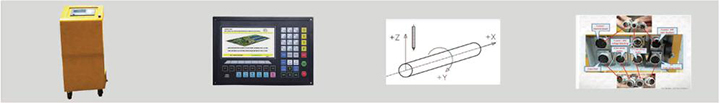

| CNC controller | HG823 |
| Axis | 3 axis |
| Motor | Step motors |
| Positioning accuracy(mm) | ±0.5/1000 |
| Repeating accuracy(mm) | ±0.2/1000 |
| Positioning speed(mm/min) | 6,000 |
| Plasma power source | Hypertherm: Powermax 45,65,85,105,125 Victor: Cutmaster40,60,80,100,120 |
| Flame cutting gas | Acetylene, Propane, LPG - O2 |
| Nesting software | Free pipe |
