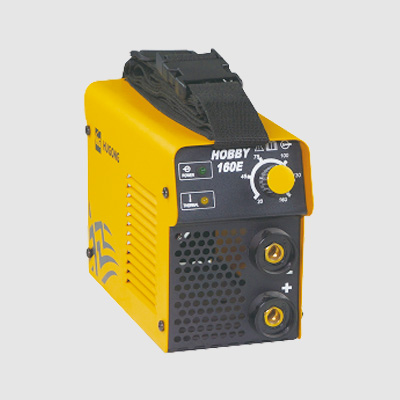

Portable stick welder
Advanced IGBT technology
Voltage compensation,150V-260V wide input voltage
Thermal protection
Stepless current setting
Hot start, anti-sticking, arc force
Continous welding
| Model | HOBBY 80 | HOBBY 120E | HOBBY 140E | HOBBY 160E | HOBBY 160 | HOBBY 180 | HOBBY 200 |
| Input Power (V) | 120 | 230 | 230 | 230 | 230 | 230 | 230 |
| Rated Input Current (A) | 26 | 23; | 27 | 32 | 30 | 35 | 40 |
| Rated Input Capacity (kVA) | 3.2 | 5 | 6 | 7 | 6.9 | 8.1 | 8.8 |
| Rated Open Circuit Voltage(V) | 65 | 82 | 82 | 82 | 60 | 65 | 65 |
| Welding Current Adjustment Range(A) | 20-80 | 20-120 | 20-140 | 20-160 | 20-160 | 20-180 | 20-200 |
| Rated Output(A) (20℃) / (40℃) | 35% / 20% @80 | 35% / 15%@120 | 35% / 15%@140 | 35% / 15%@160 | 60% / 20%@160 | 35% / 20%@180 | 35% / 20%@200 |
| Weight (kg) | 3.5 | 3.79 | 3.79 | 3.79 | 3.5 | 3.5 | 3.5 |
| Electrode Diameter (mm) | 1.6-3.2 | 1.6-3.2 | 1.6-4.0 | 1.6-4.0 | 1.6-4.0 | 1.6-5.0 | 1.6-5.0 |
| LxWxH (mm) | 290x185x220 | 235x98x152 | 235x98x152 | 235x98x152 | 290x185x220 | 328x185x230 | 328x185x230 |
