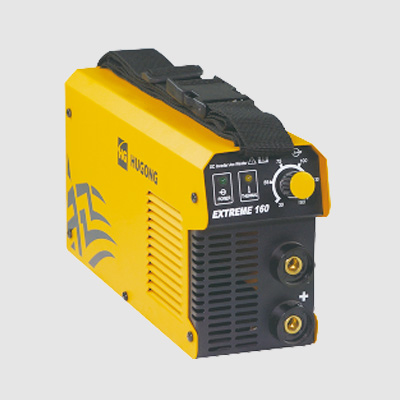

EXTREME STICK[SMAW]

Product description

Portable stick welder

Advanced IGBT technology

Voltage compensation

Thermal protection

Hot start,Anti-sticking,Arc force

Continous welding

technical parameter

Model EXTREME 80 EXTREME 100 EXTREME 120 EXTREME 140 EXTREME 160 EXTREME 200
Input Power (V) 120 230 230 230 230 230
Rated Input Current (A) 20 10.6 8.5 11.2 13.4 38
Rated Input Capacity (kVA) 2.4 4.14 5.06 5.75 6.9 8.7
Rated Open Circuit Voltage(V) 70 68 68 68 68 68
Welding Current Adjustment Range(A) 20-75 15-100 20-120 20-140 20-160 20-200
Rated Output(A) (20℃) / (40℃) 100%/40% @80 60%/35%@100 60%/15%@120 60%/20%@140 40%/20%@160 30%/15% @200
Weight (kg) 4.7 4.7 4.9 4.9 4.9 4.9
Electrode Diameter (mm) 1.6-2.5 1.6-3.2 1.6-3.2 1.6-3.2 1.6-4.0 1.6-4.0
LxWxH (mm) 328x185x230 328x185x230 363x185x230 363x185x230 363x185x230 363x185x230
