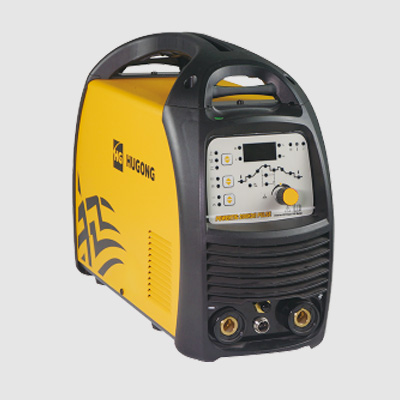

Portable inverter DC HF TIG/MMA welder with pulse
Advanced IGBT technology
Thermal prtection
Digital display
Stepless current setting
2T/4T, gas pre-flow, gas post-flow, HF frequency adjustable
Handles a wide range of wire and electrode for a variety of welding materials
Model | POWER TIG 180KD PULSE | POWER TIG 200KD PULSE |
Input Power (V) | 230 | 230 |
Rated Input Current (A) | 33 | 38 |
Rated Input Capacity (kVA) | 7.6 | 8.7 |
Output Open Circuit Voltage (V) | 66 | 66 |
Welding Current Adjustment Range (A) | TIG 5-180 / MMA 20-180 | TIG 5-200 / MMA 20-200 |
Rated Output(A) (20℃) / (40℃) | 60%/20%@180 | 60%/20%@200 |
Weight (kg) | 8 | 8.5 |
LxWxH (mm) | 480x240x480 | 480x240x480 |
