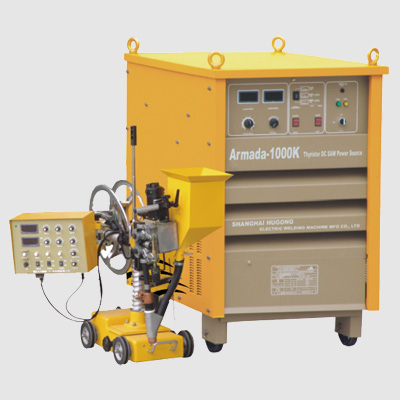

ARMADA K SUB ARC

Product description

Three phase, thyristor control DC SAW power,on wheels, fan cooled

DC output, power supply net compensation,adjustable arc force, current pre-setting, remote/local control, characteristics seletor

The machine can work as STICK, SAW, gougng power source

The welding cart has its own control system

The spool SAW wire can be used in this equipment.

The automatic wire feeding attributes high speed wire feeding

Perfect with thermal overload protection

The machine can do different sorts of welding,like flat welding, fillet welding, bevel welding and etc

The machine is designed for high effeciency automatic welding for very thick and big size work piece

Ideal and extremely stable equipment for heavy and very heavy industry, especially for shipyard using

technical parameter

Model ARMADA 630K ARMADA 1000K ARMADA 1250K
Input Power (V) 400 400 400
Rated Input Current (A) 60 111 140
Rated Input Capacity (kVA) 41 72.8 90
Rated Open Circuit Voltage(V) 70 75 75
Welding Current Adjustment Range(A) 150-630 200-1000 250-1250
Cart Model AutoTractor-630-1 AutoTractor-1000-1 AutoTractor-1250-1
Welding Speed (m/h) 10-85 10-85 10-85
Welding Wire Diameter (mm) 1.6-3.2 2.0-6.0 2.0-6.0
Weight (kg) 65 65 65
LxWxH (mm) 1040x620x1060 1100x720x1160 1100x720x1160



Parts

ACCESSORIES

OPTIONAL
