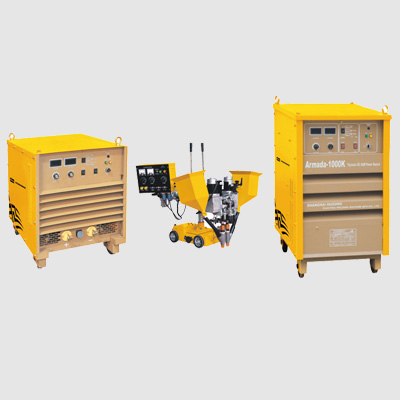

Armada Silicon Controlled Rectifier and BXL5 AC Square Wave SCR Power Source, Dual Arc and Dual Wire Cart. The dual wire system specialize in flat board weld, flat fillet weld and ship-building industry,The welding capacity is 70% higher than the normal welding machines.
The rear wire and the molten bath can reheat the front wire, changing the performance of the wire, increasing the strength of the welding line and decrease the possibility of cracking. And the welding groove is 20% thinner than that of the normal welding machine.
The distance between the two torches is adjustable to satisfy different welding demands.
There’s digital screen for welding datas, and the datas can be preinstalled. The welding action can stop automati cally when it torches the item, which increase the success rate of the are striking to 99.99%.
| Model | DUAL WIRE SUBMERGED ARC SYSTEM |
| Wire Diameter | 3.0/4.0/5.0/6.0 |
| Wire Feeding Speed(m/min) | 0.3-3.0 |
| Welding Speed(m/min) | 0.2-1.5 |
| Wire Spool Weight(kg) | 25 |
| Welding Flux Capacity(L) | 6 |
| Dimension L x W x H(mm) | 1080x900x740 |
| Weight (kg) | 71 |
| Beam Adjustable Height(mm) | 100 |
| Cross-Shaped Beam Adjustable Distance (Crossdise X Paralleldise)(mm) | 100x100 |
| Cart Rotating Angle | ±90 |
| Welding Head Rotating Angle | ±45 |
| Torch Rotating Angle | ±45 |
