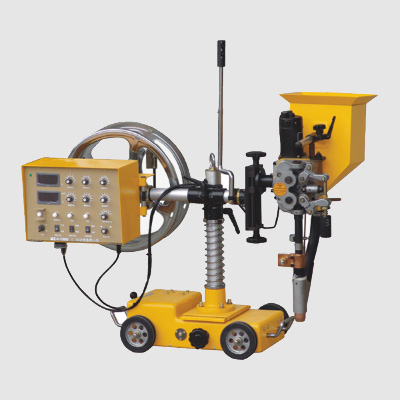

SUB ARC AUTO TRACTOR SUB ARC

Product description

Common drop feature, slow descent feature, flat characteristicArc

welding power source supporting, automatic weld ing under the flux layer protection.

In addition to the common submerged arc welding autor tractor on the market with the same

function, also has the following advantages: the double drive wire feed, long life, dynamic response, quick reaction, low inertia, large torque.

Flexible structure, convenient adjustment, to adapt to a variety of welding, welcome to pick .

technical parameter

Main technical specification MZ-ZK-A
Welding speed 0.2-1.5m/min
Wire feeding speed 0.25-2.5m/min
Welding current 630A、800A、1000A、1250A
Wire diameter 2.0/3.0 3.0/4.0/5.0 4.0/5.0/6.0
Beam adjustable height 130mm
Longitudinal dragging plate moving distance 100mm
Tumbler column rotation angle ±90°
Welding head rotation angle 45°
Torch deflexion angle 45°
Flux capacity 6L
Wire capacity 25kg
Dimensions:LxWxH(mm) 1020 × 480 × 740
Weight 58kg
