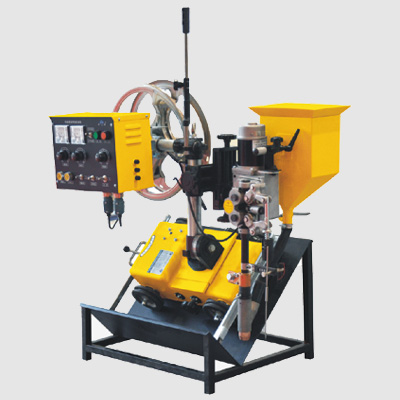

Suitable for multi-station, boat form and slope sur face welding and etc. The tractor walks stability, wide utilization and adapt for various welding wire from ￠ 2.0 to ￠6.0mm.
Wire axis and machine head are installed separately so that adjustment is convenient and flexible, could achieve multi-station welding.
Column can tilt 0～45°,realizing slant walk welding.
Adopt straightening institutions of the double drive wire feeders, feeding wire stably, well centering, huge traction, feeding wire strongly.
| Main technical specification | MZ-ZK-A |
| Welding speed | 0.2-1.5m/min |
| Wire feeding speed | 0.25-2.5m/min |
| Welding current | 630A、800A、1000A、1250A |
| Wire diameter | 2.0/3.0 3.0/4.0/5.0 4.0/5.0/6.0 |
| Column tilt angle | 0-45° |
| Tumbler column adjustable height | 130mm |
| Longitudinal dragging plate moving distance | 100mm |
| Horizontal dragging plate moving distance | 100mm |
| Tumbler column rotation angle | ±90° |
| Welding head deflection angle | 45° |
| Torch deflection angle | 45° |
| Flux capacity | 6L |
| Wire spool capacity | 25kg |
| Dimensions (L x W x H) | 1020 × 480 × 740 |
| Weight(wire not included) | 58kg |
