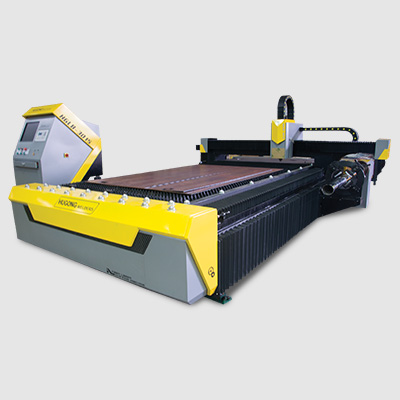

Plate-pipe complex FIBER LASER

Product description

Higher reliability achieved from table structure

Higher accuracy than plasma cutting

Higher speed than Punching process

Easy operation, friendly interface

Lower power consumption than CO2 laser

Low cost for after-cutting process,almost 0.

Lower noise and less dust

Lower danger to workers

Options for inventory and job report

technical parameter

Model HGLB3015E HGLB6015E
Process ares(L*W,mm) 1500x3000 1500x6000
Pipe size(mm) ɸ40-250 ɸ40-250
Tube size 40-175 40-175
Input power(V) 3P, 220/380/400/415 3P, 220/380/400/415
Positioning accuracy(mm) 0.05 0.05
Repeating accuracy(mm) 0.03 0.03
Max transvers speed(m/min) 80 80
Acceleration(G) 0.8 0.8
Controller interface Windows 7 Windows 7
Monitor 17'' 17''
CNC system Friendess/CYPCUT Friendess/CYPCUT
Laser unit IPG, Raycus, N-light IPG, Raycus, N-light
Loading weight(kg) 560 1120
M.S gas O2 O2
S.S gas N2 N2
Overall size(mm) 4500*3200*1800 7500*3200*1800
Total weight(kg) 4000 5500

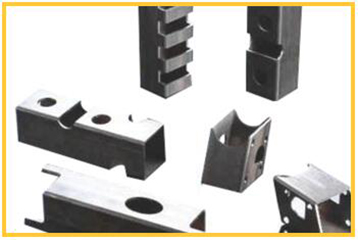

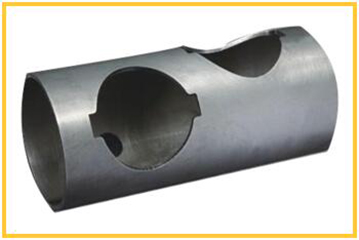

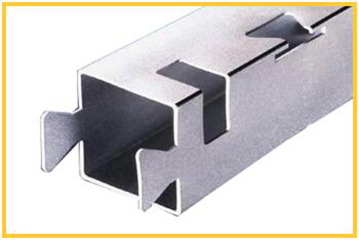

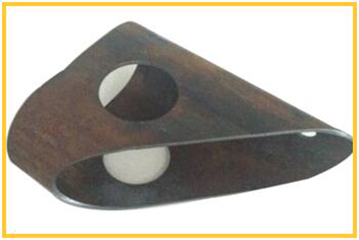

■CUTTING EFFECT







■Fiber laser unit

■Cutting head

■CNC

■Consumable



■Auxiliary device
