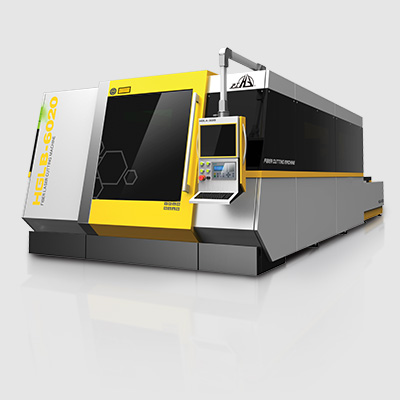

HGLA6020Q HGLA6020E FIBER LASER

Product description

Higher reliability achieved from table structure

Higher accuracy than plasma cutting

Higher speed than Punching process

Easy operation, friendly interface

Lower power consumption than CO2 laser

Low cost for after-cutting process,almost 0.

Lower noise and less dust

Lower danger to workers

Options for inventory and job report

technical parameter

Model HGLA6020Q HGLA-6020E
Process area(L*W,mm) 2000X6000 1500X6000
Input power(V) 3P, 220/380/400/415 3P, 220/380/400/415
Positioning accuracy(mm) 0.05 0.05
Repeating accuracy(mm) 0.03 0.03
Max transvers speed(m/min) 80 80
Acceleration(G) 0.8 0.8
Controller interface Windows 7 Windows 7
Monitor 17'' 17''
CNC system Friendess/CYPCUT Friendess/CYPCUT
Laser unit IPG, Raycus, N-light IPG, Raycus, N-light
Loading weight(kg) 1500 1120
M.S gas O2 O2
S.S gas N2 N2
Overall size(mm) 16100*4530*2200 7900*3200*2100
Total weight(kg) 9800 5500

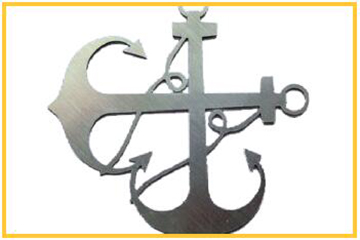

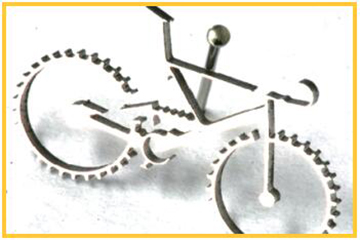

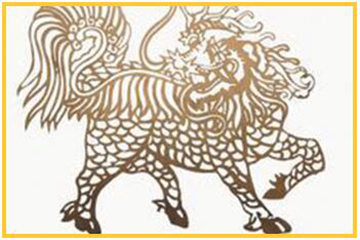

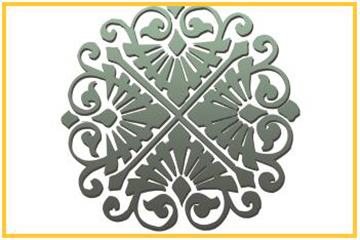

■CUTTING EFFECT







■Fiber laser unit

■Cutting head

■CNC

■Consumable



■Auxiliary device
