Higher reliability achieved from table structure
Higher accuracy than plasma cutting
Higher speed than Punching process
Easy operation, friendly interface
Lower power consumption than CO2 laser
Low cost for after-cutting process,almost 0.
Lower noise and less dust
Lower danger to workers
Options for inventory and job report

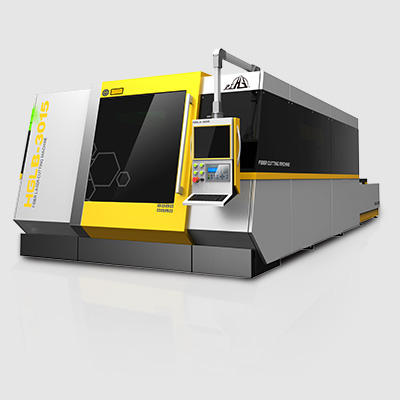

Model | HGLB3015Q | HGLB3015E |
Process area(L*W,mm) | 1500x3000 | 1500x3000 |
Input power(V) | 3P, 220/380/400/415 | 3P, 220V/380V/400V/415V |
Positioning accuracy(mm) | 0.05 | 0.05 |
Repeating accuracy(mm) | 0.03 | 0.03 |
Max transvers speed(m/min) | 80 | 80 |
Acceleration(G) | 0.8 | 0.8 |
Controller interface | Windows 7 | Windows 7 |
Monitor | 17'' | 17'' |
CNC system | Friendess/CYPUT | Friendess/CYPUT |
Laser unit | IPG, Raycus,N-light | IPG, Raycus,N-light |
Loading weight(kg) | 560 | 560 |
M.S gas | O2 | O2 |
S.S gas | N2 | N2 |
Overall size(mm) | 10000*3100*2200 | 4500*2400*2100 |
Total weight(kg) | 5600 | 4000 |
