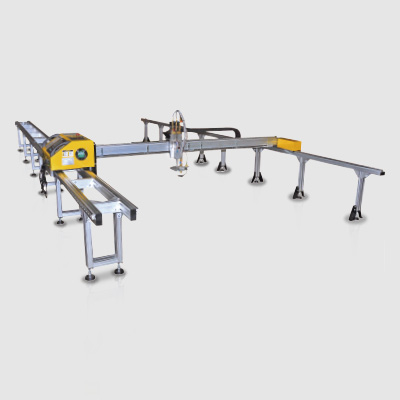

High strength, hardness alloy frame works.
Axis cored sliding way are applied on X-beam and Y rails.

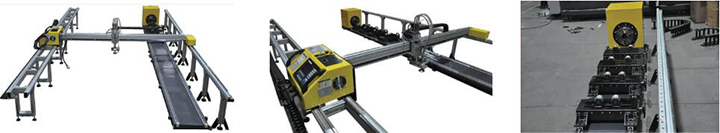

High gantry is used for easily feeding plate and unloading workpieces.
Strong and light torch station avoid damage to X-beam.
Fastening parts fix each connection and corner.
Cable chain take and protect cables.
Easy operation of plasma torch holder. Easy exchangement between plasma and oxy-fuel.
Feet are used for adjusting level easily.

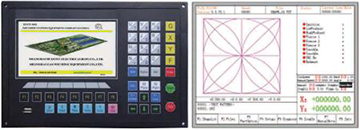

7'' Displayer, colorful interfaces, English, Russian, Spanish, Portuguese, French, Denish, Korean, Chinese.
44 shapes in controller library.
| Model | INTECUT- C |
| Power supply | 1PH, 220V,50HZ(Customised voltage is available) |
| Input capacity(W) | 180 |
| Controller displayer | 7”LCD, colorful |
| Cutting width(mm) | 2200, 2700 |
| Cutting length | 3000mm,4000mm,5000mm,Customised length is available |
| Cutting model | Flame or Plasma |
| Positioning speed(mm/min) | 5000 |
| Flame cutting thickness(mm) | 80 |
| Flame cutting speed(mm/min) | 100-750m |
| Oxygen pressure | ≦1.5Mpa |
| Cutting gas | LPG, Propane, Acetylene,O2 |
| Plasma | Up to 125A, Highly recommend Hypertherm/Victor to achieve good quality |

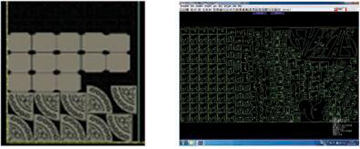

| Nesting software | FastCAM/MTC |
