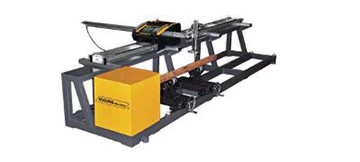

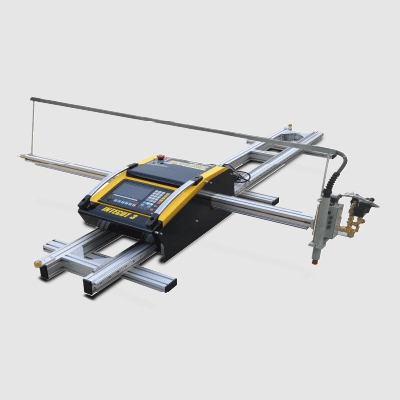

INTECUT is strong alloy structure to achieve portable and reliable purpose.
Installation can be finished in 30 minutes.
CNC is with 7'' colorful displayer and interfaces, English, Russian, Spanish, Portuguese, French, Danish, Korean and Chinese language.
44 shapes are in CNC library. It is easy for user to choose and set parameters.
Functions are for both flame and plasma cutting.
Program are built in for improving cutting quality, includes speed, pierce time, pulse, motions, etc.
Easy exchanging is between flame and plasma cutting model.
USB port for inputting and outputting programs.
Compatible for nesting software, FastCAM, MTC, Turbonest, etc. Drawings from AUTOCAD, TEKLA and SOLIDWORKS are easily used.
| Model | INTECUT 3 | INTECUT 4 | INTECUT 5 |
| Input voltage(V) | 220(Customised voltage is available) | ||
| Frequency(Hz) | 50 or 60 | ||
| Input power(W) | 180 | ||
| Monitor | LCD 5.7”with keyboard | ||
| Effective cutting size(W*L) | 1220*2000 | 1220*3400 | 1500*3400 |
| Position speed(mm/min) | Idle speed: 0-6000 | ||
| Flame cutting speed(mm/min) | Cutting speed: 6-750 | ||
| Transverse arm(mm) | 2000 | 2000 | 2300 |
| Rail length(mm) | 2500 | 4000 | 4000 |
| Total weight(Kg) | 130 | 145 | 160Kg |
| Cutting mode | Flame/Plasma | ||
| Cutting gas | Acetylene,Propane,LPG-O2 | ||
