CNC controller:American,European and Sparkon brand options
Automatic THC: Hypertherm and Sparkon brand options
Servo motor: Panasonic
Gear box: Germany brand NEUGART
Linear rail: TBI or HIWIN
Relay: Omron
Breaker: Schneider
Nesting software options
Australian: FastCAM
American: Hypertherm Pronesstlt
American: Hypertherm LTS
American: SigmaNest

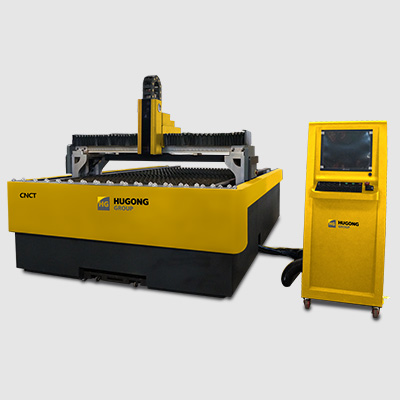

| Model | CNCT |
| Power supply(V,Hz) | 110/220/230/240, 220/380/400/415, 50/60 |
| Input capacity(KW) | 3 |
| Cutting width(mm) | 1500, 2000 |
| Cutting length(mm) | 3000, 4000, 5000, 6000 |
| CNC controller | Hypertherm or Sparkon brand |
| CNC controller | 15''/17'' colorful monitor, USB port |
| Cutting model | Plasma (Flame is optional) |
| Travel speed(mm/min) | 12,000 |
| Accuracy(mm) | Positioning: 0.5/1000、Repeatability: 0.2/1000 |
| Torch height controller | ARC voltage THC |
| Plasma options | Powermax series,Maxpro200, HPRXD |
| Nesting software | Optional |
| Machine size(mm) | 4500*2700*1600 |
